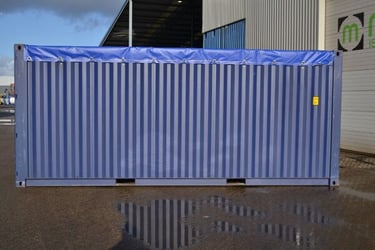

20′ HC Open Top Container

Description

Superior Access & Unmatched Flexibility

The 20ft HC (High Cube) Open Top Container is a specialized shipping and storage unit engineered for oversized cargo and goods that require top loading. With a reinforced open‑top design, heavy‑duty construction, and high cube height, this container delivers exceptional functionality and adaptability across industries — from construction and mining to agriculture and manufacturing.

Built to strict ISO standards, this open top container combines rugged strength, easy access from above, and enhanced internal capacity to meet the demands of modern logistics and storage challenges. Whether you’re handling tall machinery, bulky materials, or irregular‑shaped loads, this container makes loading and unloading easier than ever.

---

Key Features & Benefits

✔ High Cube Height – Extra Internal Space

This container features a high cube design, measuring approximately 9ft 6in (2.9m) in height — roughly one foot taller than standard containers. The additional height provides increased internal volume, allowing for larger or taller items to be stored and transported with ease.

This expanded vertical space makes the 20ft HC Open Top Container ideal for high‑density cargo, oversized parts, and industrial equipment that needs clearance beyond standard container dimensions.

---

✔ Open Top Design for Easy Loading & Unloading

One of the most valuable features of this container is its removable tarpaulin roof or open‑top structure, which allows goods to be loaded from the top using cranes, forklifts, or derricks. This is especially beneficial for:

• Heavy or awkward‑shaped equipment
• Large machinery parts
• Bulk materials like gravel, sand, steel coils, or timber
• Construction and mining applications

With no fixed roof, loading and unloading operations become faster, safer, and more efficient — reducing labor time and improving workflow.

---

✔ Heavy‑Duty Steel Construction

Manufactured from premium Cor‑Ten steel, this open top container offers excellent resistance to corrosion, rough handling, and tough environmental conditions. Reinforced corner posts and cross‑members ensure structural stability, even under heavy loads.

The rugged build provides lasting protection for your cargo, and the high cube height enhances versatility without sacrificing strength.

---

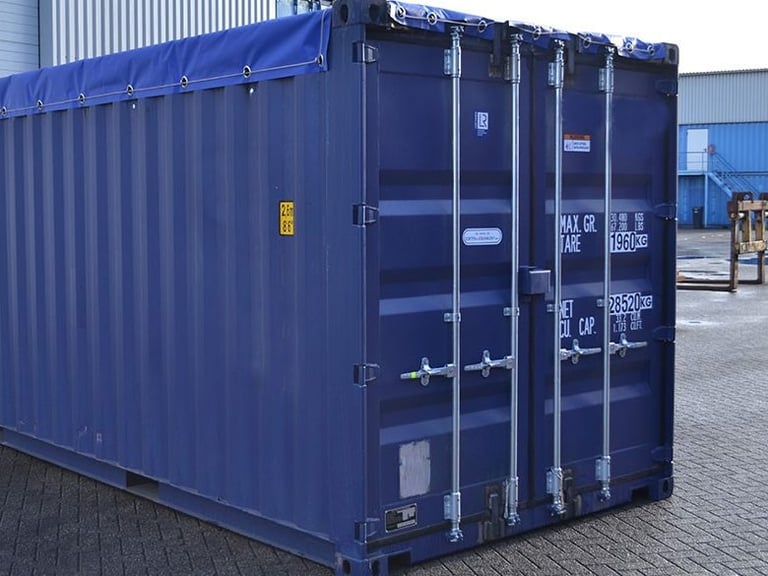

✔ Secure Locking & Weather Protection

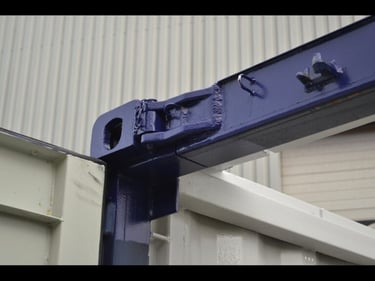

Although designed for open‑top access, this container still incorporates secure side doors equipped with robust locking bars and a dedicated lockbox for maximum security when closed. A durable tarpaulin cover or steel roof beams help protect cargo against weather during transit or storage.

Ventilation features promote airflow to help reduce condensation and moisture buildup, preserving the condition of stored goods.

---

Technical Specifications

• External Dimensions:
  • Length: 6.06 m (20 ft)
  • Width: 2.44 m
  • Height: 2.90 m (High Cube)

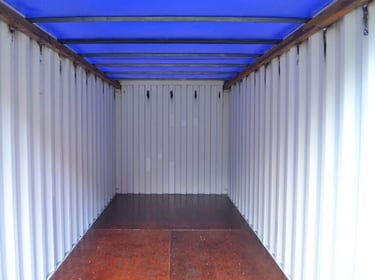

• Internal Dimensions:
  • Length: 5.84 m
  • Width: 2.35 m
  • Height: 2.70 m
• Door Opening:
  • Width: 2.34 m
  • Height: 2.59 m
• Cubic Capacity: Approx. 35–40 m³
• Tare Weight: ~2,300 kg
• Max Payload: ~28,000 kg

These specifications ensure ample capacity for oversized and heavy loads while maintaining compatibility with global shipping standards.

---

Applications & Use Cases

The 20ft HC Open Top Container is designed to tackle logistical challenges across a wide range of industries:

📌 Heavy Machinery & Industrial Equipment

Ideal for transporting tall components, bulk parts, and uneven equipment that can’t fit through standard side doors.

📌 Construction & Mining

Perfect for construction materials, steel beams, concrete forms, and mining equipment that require top loading due to size or shape.

📌 Agricultural & Forestry Loads

Suited for bulky agricultural machinery, harvested timber, and oversized farm equipment.

📌 Bulk Commodities

Materials such as gravel, crushed stone, sand, and scrap metal can be loaded easily from above, simplifying operations and reducing handling costs.

📌 Container Conversion Projects

The structural strength and open top design also make this container a popular base for custom conversions — including open workspaces, exhibition displays, or unique storage units.

---

Designed for Ease of Handling & Transport

Despite its specialized open top configuration, this container remains fully ISO‑compliant and compatible with standard transport systems. Forklift pockets and ISO corner castings allow efficient handling with cranes, forklifts, or container spreader bars.

The unit is easily transported by truck, rail, or ship, offering flexibility for both domestic and international logistics.

---

Why Choose a 20ft HC Open Top Container?

A 20ft HC Open Top Container is ideal for those who need more than just enclosed storage — it’s a complete solution for oversized cargo that standard containers cannot accommodate. With its high cube height and top loading capability, it significantly enhances operational efficiency and cargo adaptability.

Here’s why it stands out:

• Extra internal height for larger loads
• Open‑top access for fast, safe loading
• Heavy‑duty construction for long‑lasting use
• Compatible with global shipping and handling networks
• Excellent for both industrial and commercial applications

---

Conclusion

The 20ft HC Open Top Container delivers a perfect balance of strength, space, and accessibility. Whether you’re managing oversized machinery, heavy‑duty materials, or frequent top loading operations, this container performs with reliability and efficiency.

This makes it a premium choice for industries seeking a container solution that combines robust construction with maximum internal volume and flexible loading access.
